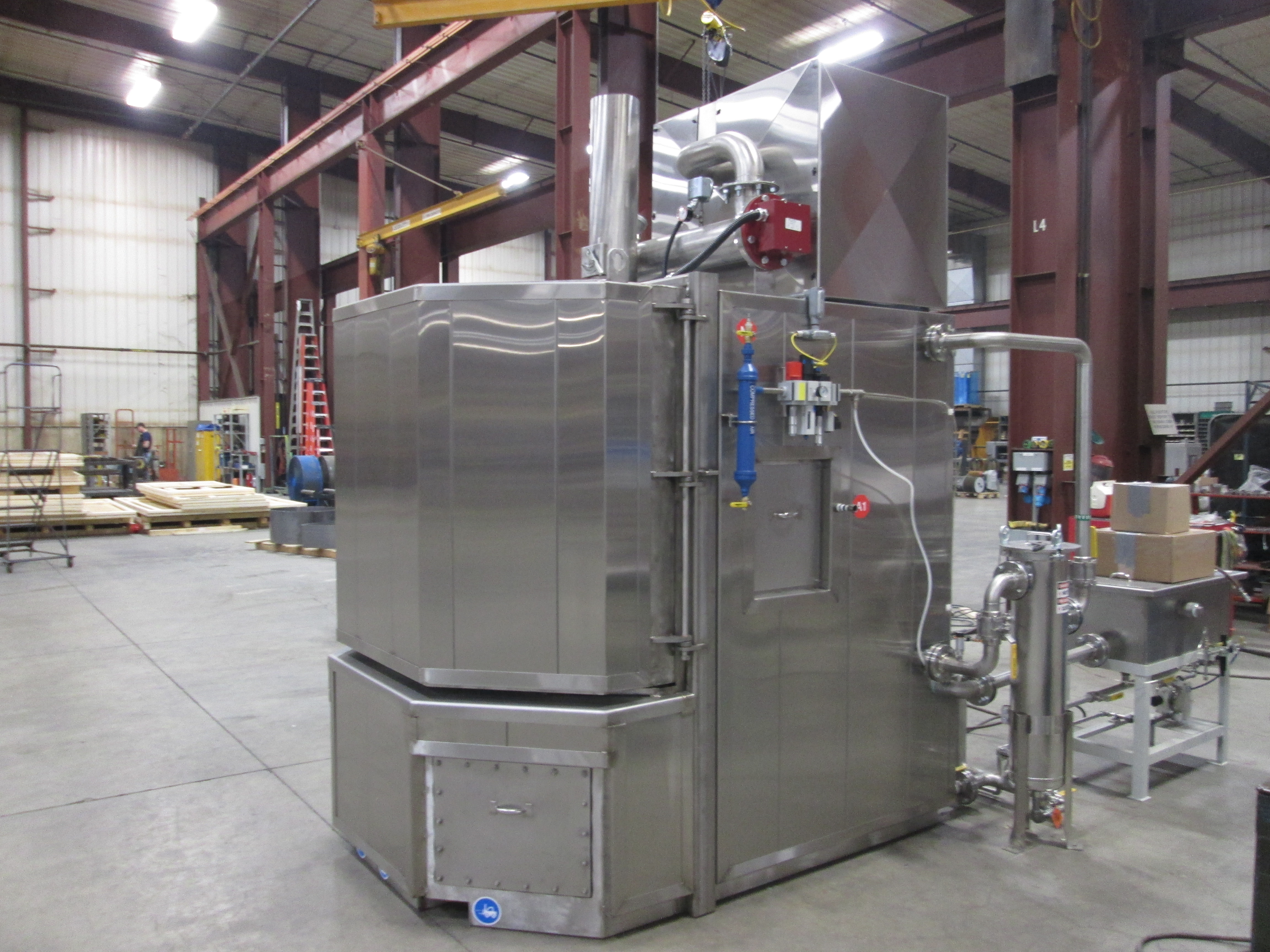

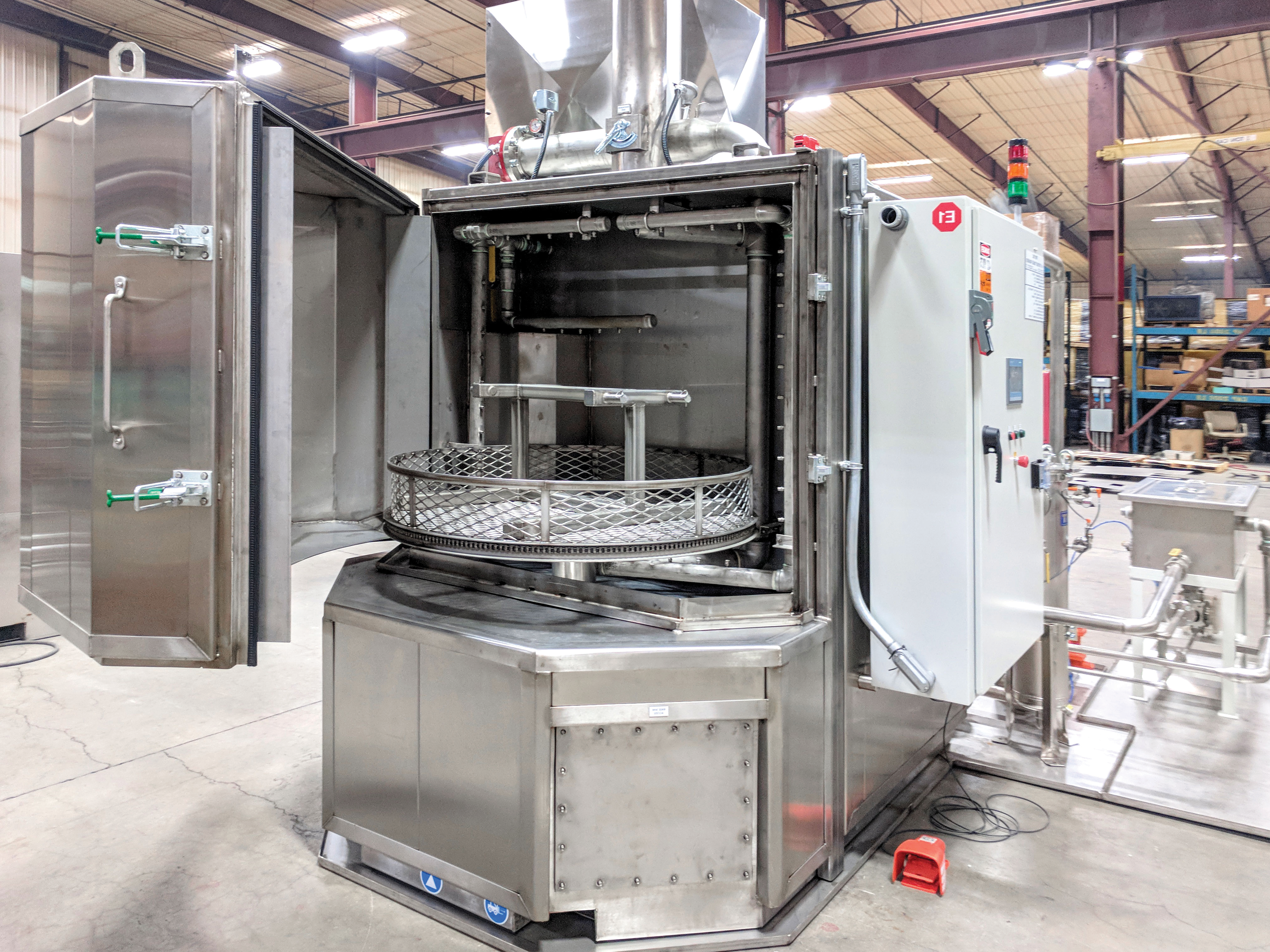

Rotary Table

Arnold’s rotary table washers are a trusted workhorse. Built tough for demanding jobs, Arnold’s rotary table washers are ready to tackle your next parts cleaning challenge and provide years of reliable service. Rotary table washers are best suited for low volume parts production, batch cleaning, processing multiple part sizes and geometries, and for large, heavy parts.

Rotary table washers can be configured to meet a variety of parts cleaning or process needs. Typical cycles include heated wash, rinse and blow-off, with additional stages available. Typical rotating table sizes range from 24 to 72 inches in diameter and part heights up to 120”, with custom sizes available.

Standard Features

  • Single-stage wash

  • Swing-away upper spray manifolds

  • Precision spray nozzles

  • 2” inch cabinet sound-proofing

  • Welded pipe joints for leak-free operation

  • Heavy-duty, reliable components

  • Heavy gauge stainless steel construction for optimum life

  • Mineral wool insulation for energy conservation

  • Electric solution tank heater

  • Automatic level controls w/ low level protection

  • Robust drive system with variable frequency drive

  • Cast iron solution pump with bag filtration system

  • Allen Bradley PLC & HMI controls

  • Made in the USA quality

Options

  • Multi-stage (wash, rinse, blow-off)

  • Additional wet stages (pre-wash, phosphate coating, rust preventative, fresh water rinse, RO or DI water rinse)

  • Continuous, indexing, or manual rotation

  • Part fixtures and baskets

  • Automated loading and unloading

  • Multiple door styles (swing, sliding, clam-shell)

  • Stainless steel solution pump

  • High-pressure and high-flow applications

  • Additional filtration options (progressive, multi-bag, cartridge, magnetic, etc.)

  • Filter pressure monitoring systems

  • Additional heating options (gas, steam)

  • Additional controls options available (relay logic, Siemens, Mitsubishi, Omron, etc.)

  • Oil separation (disk skimmer, belt skimmer, coalescer)

  • Sludge management (drag-out conveyor, clarifier)

  • Powered exhaust (exhaust fan, mist collector)

  • Noise reduction package
