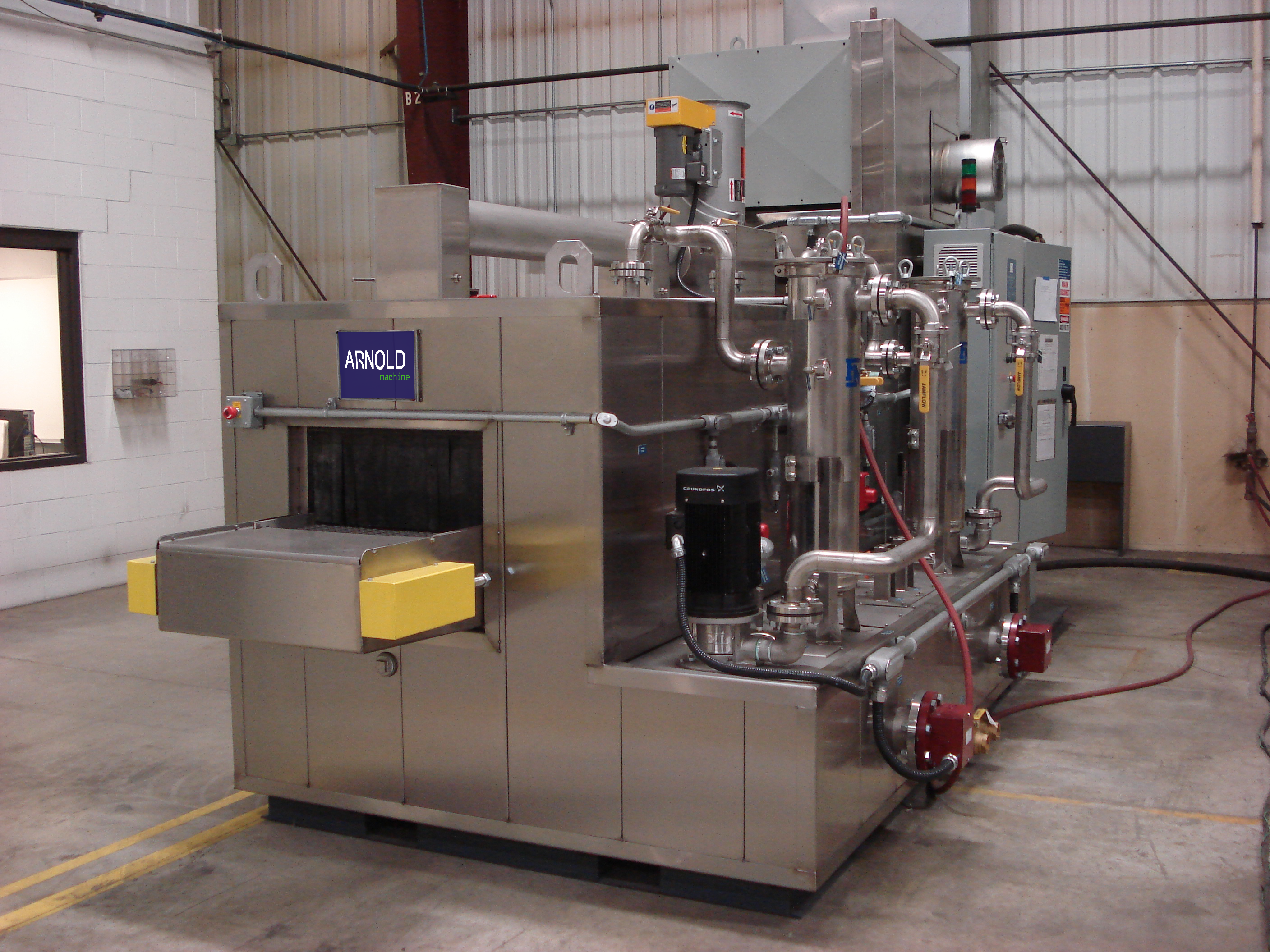

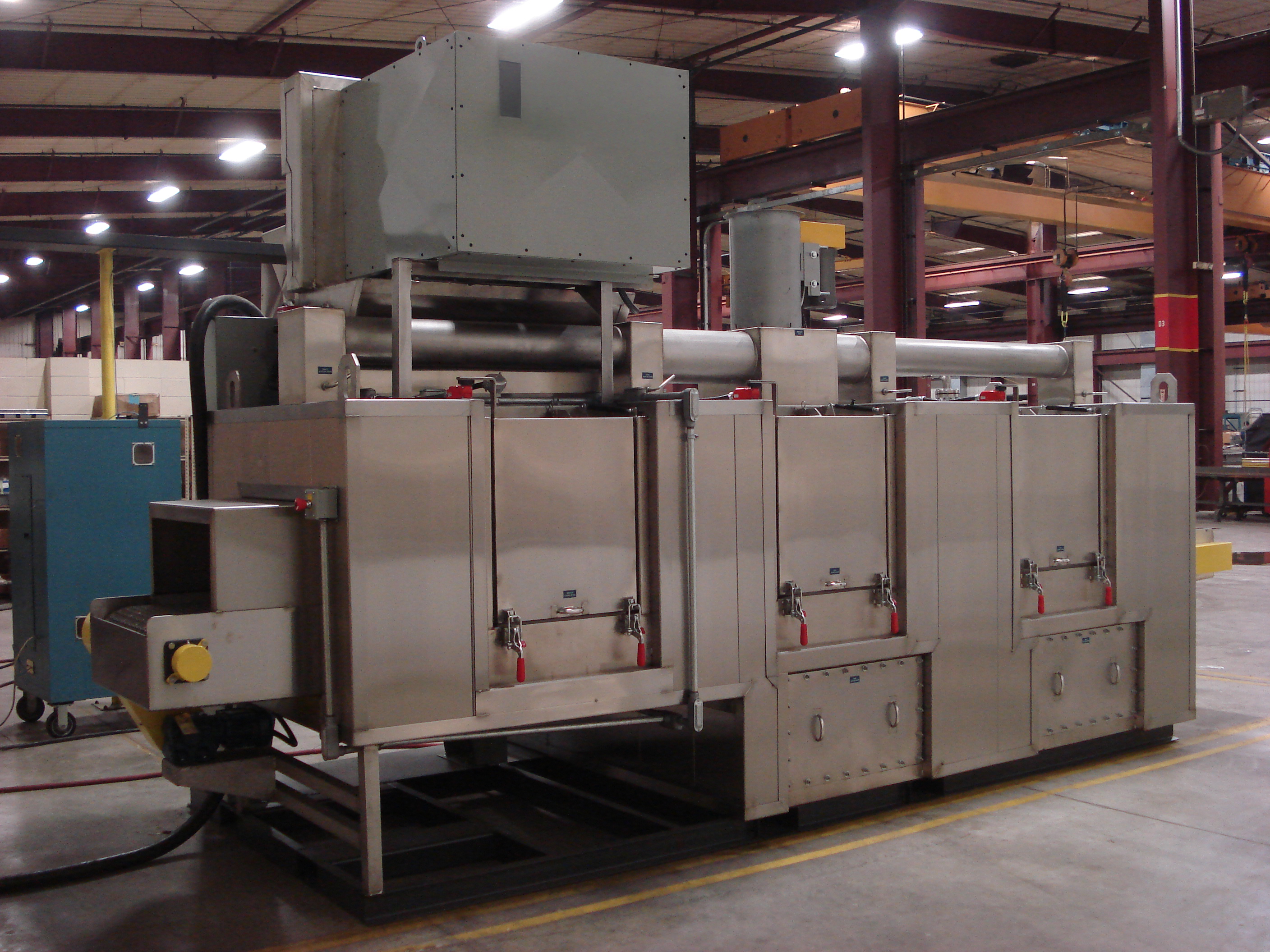

3-Stage Continuous Belt Washer

The Arnold Machine 3-Stage Continuous Belt Washer is a general-purpose washer suited for high-volume cleaning applications and multiple part sizes and geometries. The machine is ideal for inline production processes where cleaning is required between stages, or for final wash applications.

Our standard offering features a proven design of over 40 years with a stainless steel mesh belt available in 3 different widths and 2 different opening height options. The cycle consists of a heated wash stage, a heated rinse stage, and a heated, high-pressure blow-off stage. The stages are offered in various lengths determined by specific process requirements. Belt speed is adjustable via the touchscreen and can be programmed into a part-specific recipe

Options include automatic chemistry level monitoring and addition, oil removal systems for the wash and rinse tanks, a mist collector or exhaust fan, and a single-point drain if required. Standard machines are offered in various belt width and stage lengths options. Custom machine sizes and configurations are also available if needed.

Efficient High-Volume Cleaning

Handles a wide variety of part sizes and shapes without the need for custom fixtures, streamlining production.

Customizable Performance

Adjustable belt speeds, programmable cleaning recipes, and stage length options allow for tailored operation.

Durable, Long-Lasting Design

Heavy-duty stainless steel construction with advanced safety features ensures years of reliable, low-maintenance operation.

HOW 3-STAGE CONTINUOUS BELT WASHERS WORK

The cleaning cycle is designed for thorough and efficient part washing in continuous production environments:

Pressurized Heated Wash: Removes contaminants with heated, high-pressure spray.
Pressurized Heated Rinse: Rinses away residual cleaning solution to ensure cleanliness.
High-Pressure Heated Blow-Off: Quickly and effectively dries parts before the next stage in production.

Stage lengths and belt speeds can be customized to meet specific process requirements. Recipes are controlled via a user-friendly touchscreen interface for consistent, repeatable results.

Common Applications

Belt parts washers are particularly well-suited for high-volume applications where efficiency is crucial. They streamline the washing process by eliminating the need for custom fixturing or jigs. These belt washers can handle virtually any type of product.

Standard Features & Benefits

Completely manufactured in the United States
The base machine is constructed out of 10ga stainless steel and features 2” insulation covered with 16ga polished stainless steel
Plumbing is 304 stainless steel pipe
Tank floors are pitched to a 2” stainless steel drain valve
Belt speed is adjustable from 2 fpm to 12 fpm via touchscreen

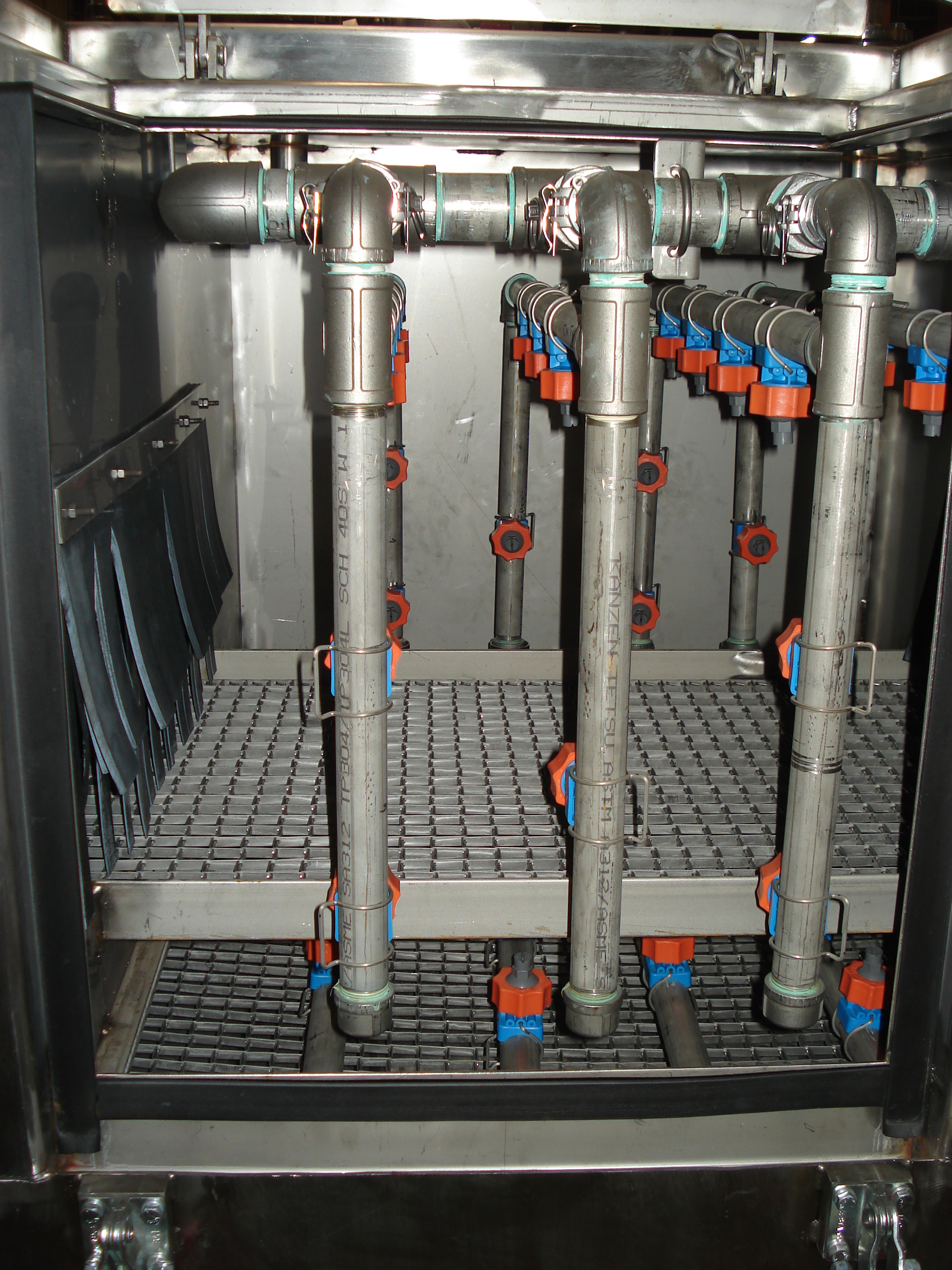

Manual upper & lower spray header throttling control valves
Easy removal and maintenance of spray headers
Safety interlocked cabinet access doors and emergency stops at both ends
Stainless steel bag filters for wash and rinse tanks
Stainless steel liquid level float switches to control tank levels
Solenoid valve for automating make-up of wash and rinse tank water levels
Lift off access covers on the top of the tanks providing access to chip & debris collection baskets

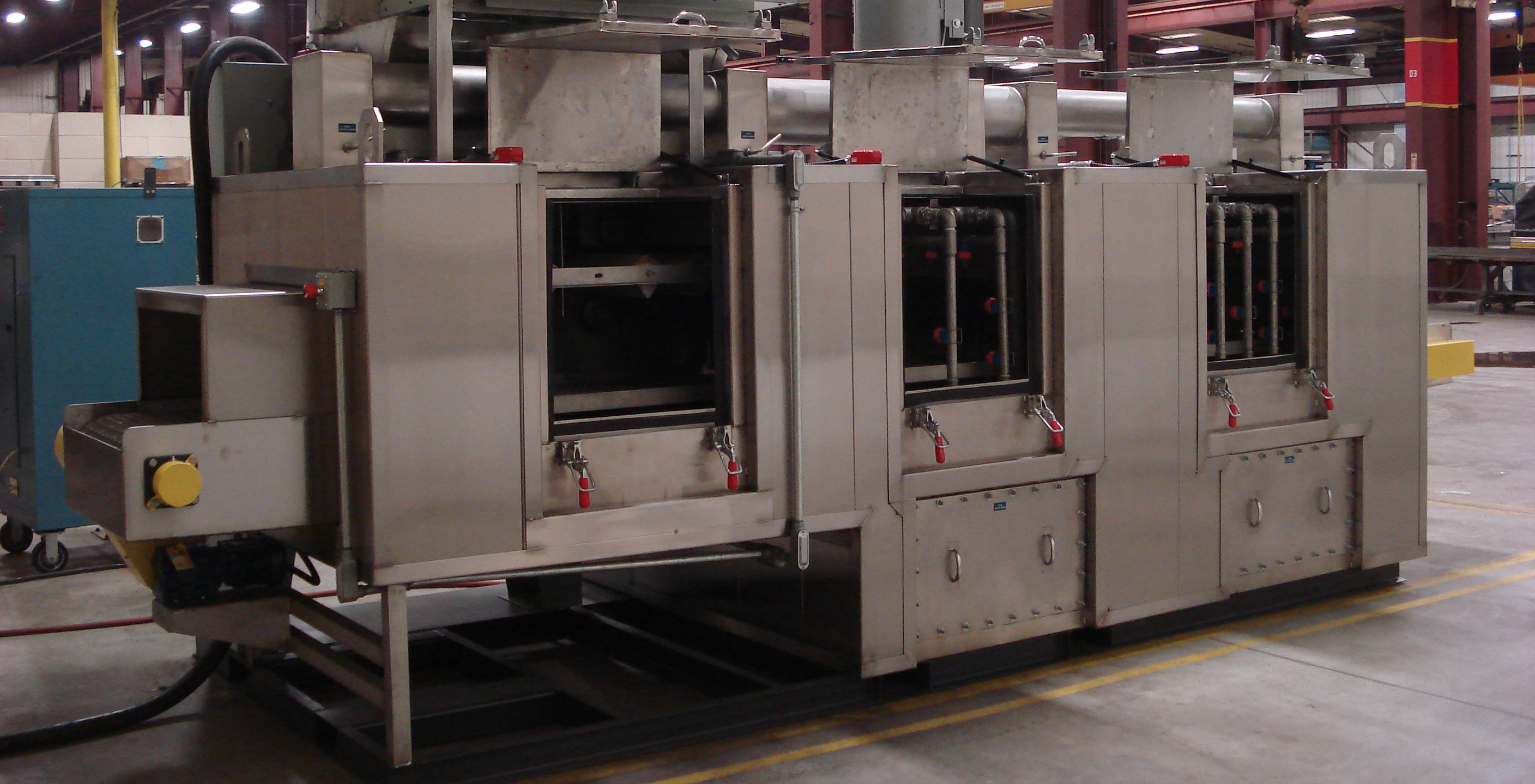

Large tank doors for easy access for cleaning and maintenance
Filter change alert on the touchscreen display
Customizable cleaning recipes allowing simple changeover between different parts and cleaning requirements
Integrated lifting lugs
1-year parts & labor warranty on components & workmanship, and 10-year limited warranty on structural integrity

Specifications

Belt Width	12"	24"	36"
Wash/Rinse Stage Lengths (ft)	4"/6"	4"/6"	4"/6"
Blow-off Stage Lengths (ft)	4"/6"/8"	4"/6"/8"	4"/6"/8"
Wash/Rinse Tank Capacity (gal)	200	200/300	300
Overall Machine Width (ft)	5"	6"	7"
Operator Load Height (in)	40"	40"	40"

Utility Requirements
- Electrical
  - 480 VAC - 3 phase - 60 Hz - 200amp or 400amp (depending on options)
  - NEMA 12 main control panel with sequester 480v main disconnect
  - UL approved 24 VDC controls package with Allen-Bradley
  - CompacLogix PLC and Weintek 10” touchscreen control panel
- Water Supply
  - 1" NPT

Optional Items

Exhaust Fan
Mist Collector
25gal Coalescing Oil Removal System (can be added to wash and/or rinse tanks)
Automatic Chemical Monitoring & Addition
Noise Reduction Package
Single Point Tank Drain
Canadian CSA Certification
Service Plan Options
Remote Diagnostic Access
“Gull-wing” maintenance-friendly access doors
